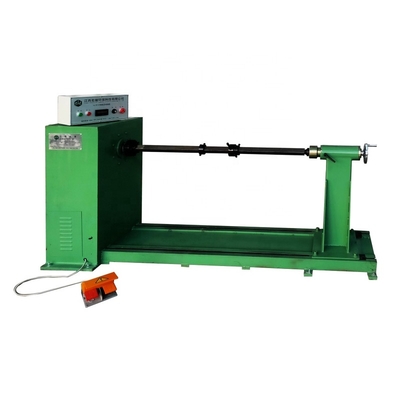

High and Low Retail Voltage GDY-1.5T Horizontal Winding Machine for 1.5T Dry Type Transformer

1 Set
MOQ
$7,000.00(>=1 Sets)
τιμή
High and Low Retail Voltage GDY-1.5T Horizontal Winding Machine for 1.5T Dry Type Transformer
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Max. Load (KG): 300 KG
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Motor, Gear
Coil Type: Rectangular/Oval/Round
Length of Axis (mm): 1050 mm
Center Height (mm): 850 mm
Max.Transformer Capacity(kVA): 380 kVA
CNC or Not: CNC
Motor Power (kw): 4
Weight (KG): 3000
Dimension(L*W*H): Custom
Wire Diameter Range (mm): 0.6 - 4.5 mm
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Retail, Machinery Repair Shops, Manufacturing Plant
Showroom Location: None
Product name: High and Low Voltage horizontal winding machine
Delivery time: in 45 working days
Model: GDY-1.5T
Coil width: 1000 mm
Central height: 850 mm
round wire spec: 0.6~4.5 mm
winding speed: 100 RPM
winding power: 4 KW
MOQ: 1 set
Βασικές πληροφορίες
Model Number: GDY-1.5T
Πληρωμής & Αποστολής Όροι
Packaging Details: Standard Export Package.
Supply Ability: 200 Set/Sets per Year
Περιγραφή προϊόντων
Production Description

General introduction of the machine:


Usage：GDY-0.5t high and low voltage coil winding machine is used for winding high-voltage and low-voltage coil of transformer.

Characteristic：
This machine uses a motor and reducer to drive gears. Parking is stable and reliable. Two gears (fast, slow), automatic winding count, power off memory function. Encoder counting, dual foot switch in and out control.

Typical standard specifications are shown below, these can be easily modified as requested.
No.
Items
Datas
1
Model
GDY-0.5T
GDY-1T
GDY-1.5T
GDY-2T
GDY-3T
GDY-5T
2
Winding width
150-800mm
150-800mm
1000 mm
150-1000mm
150-1200mm
150-2500mm
3
coil form
Rectangular/Oval/Round
Rectangular/Oval/Round
Rectangular/Oval/Round
Rectangular/Oval/Round
Rectangular/Oval/Round
Rectangular/Oval/Round
4
Coil material
Cu/Al
Cu/Al
Cu/Al
Cu/Al
Cu/Al
Cu/Al
5
Winding speed
0-240 RPM
0-150 RPM
0-100 RPM
0-70 RPM
0-70 RPM
0-30 RPM
6
Max. torque
600N
1000N
1000N
2000N
3000N
6000N
7
Central height
850
850
850
850
1000
1200
8
Motor power
3kw
4kw
4kw
5.5kw
7.5kw
11kw
9
Turns counting
Rotary encoder
Rotary encoder
Rotary encoder
Rotary encoder
Rotary encoder
Rotary encoder
10
Counting precision
0.1 Turn
0.1 Turn
0.1 Turn
0.1 Turn
0.1 Turn
0.1 Turn
11
Round wire
0.6-4.5mm
0.6-4.5mm
0.6-4.5mm
0.6-4.5mm
0.6-4.5mm
0.6-4.5mm
12
Flat wire
Multiple wires are wound together
Multiple wires are wound together
Multiple wires are wound together
Multiple wires are wound together
Multiple wires are wound together
Multiple wires are wound together
13
Counting range
0-9999.9
0-9999.9
0-9999.9
0-9999.9
0-9999.9
0-9999.9
14
Rated voltage
380v
380v
380v
380v
380v
380v
If you want to know more, please contact us immediately! We will give you more detailed product information you need.
Main Products
Why Choose Us
About Us
Exhibition And Customers
Certifications
Packaging & Shipping
FAQ
1Q: Are you manufacturer or trading company?
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at
competitive price .
2Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal
demands.Besides we strictly control each production chain, all machines have to be tested before loading.

3Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears;

4Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% T/T payment before delivery.

5Q:And the delivery time?
A:Usually the delivery will be arranged in 60 working days after received your down payment,

6Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,
