The winding machine for motor winding three phase motor stator coil making machine for electric motor coil winding

Three phase motor stator coil making machine

(1) Machine main function and characteristic

The stator coil making machine could be used to do multi-connect and multi-layer winding.

This coil making machine is with 4 winding heads, In one time, the machine could wind 1-4 groups of coils simultaneously, high output.

Tooling change is very fast and convenient.

Could save 999 group data, and machine automatic stop once wire run out

Free of maintenance.

(2) Application

This Three phase motor stator coil making machine is suitable for multi-connected and multi layer winding. Apply to all kinds of micro motors such as a motor, pump motor, air conditioner motor, three phase machine, etc.

(3) Technical data

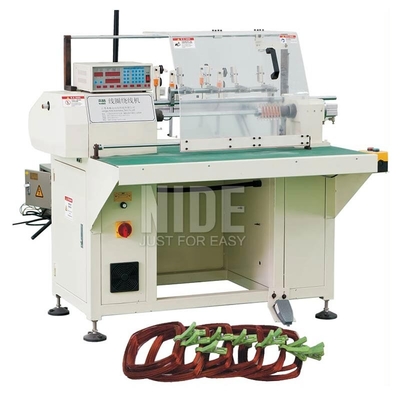

Coil making machine picture

Press the follow green button and the coil making machine starts to work

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
