Χαρακτηριστικά

Προδιαγραφές

Applicable Industries: Garment Shops, Manufacturing Plant, Home Use, textile machinery

Condition: New

Application: yarn winding machine

Automatic Grade: Automatic

Production Capacity: 10000

Memory Capacity: 10000

Voltage: 380v

Power: 440w

Dimension(L*W*H): 2200x640x1610mm

Weight: 300kg/5spindles

Warranty: 1 Year

After-sales Service Provided: Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas

Πιστοποίηση: CE

Power supply: 380VÂ±38%,50Â±1HZ

Linear velocity: 200--1200m/min

Traverse: 130mm--260mm

Tensioner: weighted gate tension device

Take-up package diameter: 180 to 200mm

Rated power: 440W/spindle

Form of operation: Single sides single layer

Number of spindles: Each section have 5 spindles

Spindle gauge: 360mm

Βασικές πληροφορίες

Πιστοποίηση: CE

Πληρωμής & Αποστολής Όροι

Packaging Details: wooden case

Supply Ability: 5 Set/Sets per Day

Περιγραφή προϊόντων

Machine Application:

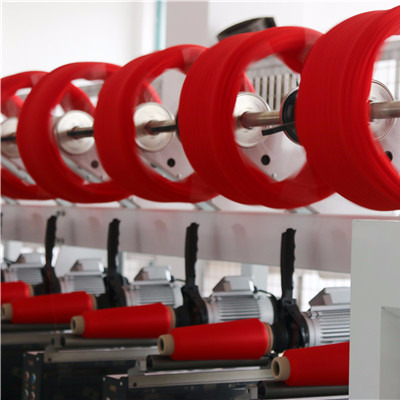

FHZN-800A Precision high speed cone winding machine( pineapple cone winding machine.

Innovative scheme, advanced technology and application. The winding speed of this machine is controlled by computer, which has the maximum of 1200 m/min. Precise and sensitive speed testing system can even ensure the winding length (weight). It is quite suitable for winding yarn of Nylon, Filament yarn, Polyester yarn, FDY, DTY And other chemical fiber.

hank to cone or cone to cone winding machine

-Winding structure part
Machine is single side working structure, adopt metal plate structure , each section is compose of 5 structure units
-Motive power parts
Contain frequency converter( or brushless motor drive),sensor, electrical control box, operation element/executive component
-Driving parts
Machine is single spindle individual drive, motor drive overfeed directly and take-up active winding cheese axis.

Types of winding	Precision winding/Electronic winding
Mechanical speed	up to 1000m/min (process speed depending on process parameters)
Package shape	Freely Programmable
Traverse length	30-260mm
Take-up package diameter	180 to 200mm
Package weight	up to 4kg
Supply package diameter	up to 320 mm
suitable Yarns	Nylon, Filament yarn, FDY, DTY,Polyester yarn, Spun thread and etc.
Take up bobbin	0°-5°57'
Layout	single side machine
Number of spindles per section	5 spindles/group
Standard. number of spindles	40 spindles
Spindle Gauge	438mm
Drive	each spindle individual
Installed power	400w per spindle
Density of winding	Freely programmable
*Size per section (LWH)*	22006401610mm
Per section weight	300kg/4 head
