Full Automatic Guangzhou Electric Machine Ferrite Core Toroidal Transformer Coil Winding Transformer Coil and Tape Winding Machine

1.0 Sets
MOQ
Full Automatic Guangzhou Electric Machine Ferrite Core Toroidal Transformer Coil Winding Transformer Coil and Tape Winding Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Max. Load (KG): 720 KG
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor
Coil Type: toroidal
Length of Axis (mm): 20 mm
Center Height (mm): 15 mm
Max.Transformer Capacity(kVA): 3 kVA
CNC or Not: CNC
Motor Power (kw): 3
Weight (KG): 720
Dimension(L*W*H): 1000(L)x1300(W)x1600(H)
Wire Diameter Range (mm): 0.02 - 0.6 mm
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: Energy & Mining, Home Use, Printing Shops, Food & Beverage Shops, Farms, Retail, Restaurant, Food & Beverage Factory, Hotels, Construction works , Food Shop, Advertising Company, Building Material Shops, Machinery Repair Shops, Manuf
Showroom Location: None
Application: Transformer Coil Winding
Name: Transformer Coil Winding Machine
Function: Automatic Winding
Πιστοποίηση: ISO9001
Winding speed: 12000
Type: Fully Automatic
Material: Stainless Steel
Used for: High frequency transformer
Delivery time: 25 Working Days
Power: 3Kw
After Warranty Service: Video technical support, Online support, Spare parts
After-sales Service Provided: Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support, Free spare parts
Local Service Location: None
Βασικές πληροφορίες
Πιστοποίηση: ISO9001
Πληρωμής & Αποστολής Όροι
Packaging Details: Plywood
Supply Ability: 10 Set/Sets per Month
Περιγραφή προϊόντων
Product Description
AC Power voltage
220-240V
Rated power
2500W
The spindle number
12
Spindle speed(rpm)
6000
Spindle Pitch (mm)
51
Spindle servo motor power(W)
1500
Quick clamp interface diameter (m)
10
Apply to wire diameter (mm)
0.02-0.6
Maximum support multi-strand
3
Maximum outside diameter of winding bobbin (mm)
50/25
Movement amount of quide rod (mm)
X:120;Y:120;Z:80
Movement speed of guide rod m (mm/sec)
200
Applicable air pressure(Mpa)
0.4-0.6
Machine size (mm)
1000(L)X1300(W)X1600(H)
Machine weight(kg)
720

Item

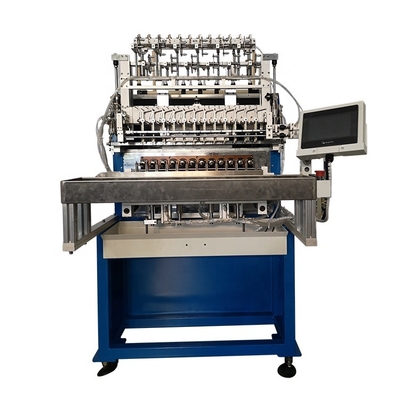

12 axis 51 spacing winding machine


Product instruction
The machine is suitable for high volume and high efficiency winding and taping coils


Optional functions
Vibration plate automatic feeding
Wrap tape function
Manual feeding



Product Feature
*The machine structure design is simple and reasonable, the important standard accessories are alhigh-end brands which ensures the fast operation speed, high precision, good stability and strong rigidity of the equipment, and greatly extends the service life of the equipment.
*The machine is equipped with a touch screen, Chinese and English control system which is easy to operate, to learn, to understand and to maintain, help the users save more time and greatly improving the production efficiency.
*The design of quick replacement fixture chuck can effectively save the time of product type change
*Multiple functions are available for users to choose freely
*This machine is used for winding transformer products aim to replace the manual operation,its with wide feeding range, high production quality, fast production efficiency, it will reduce labor cost and control product cost greatly,easy operation be widely used in the inverter production field.
