Winding Threads Top Grade Woolen Cotton Knitting Yarn Making Machine Cone Winder For Textile Machinery

1 Set
MOQ
Winding Threads Top Grade Woolen Cotton Knitting Yarn Making Machine Cone Winder For Textile Machinery
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Application: Winding Yarns
Automatic Grade: Semi-automatic
Production Capacity: 200--700 M / min
Model Number: ZW015
Voltage: 380v/220v
Power: 90 W/ spindle
Dimension(L*W*H): 1850*800*1650mm
Weight: 350kg
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Πιστοποίηση: ISO CE
Name: wool spinning winding machine
Βασικές πληροφορίες
Πιστοποίηση: ISO CE
Model Number: ZW015
Πληρωμής & Αποστολής Όροι
Packaging Details: packaged form :export wooden packing package size: length 1890mm * width 820mm * high 1380mm per set
Supply Ability: 5000 Set/Sets per Year
Περιγραφή προϊόντων













Product parameters

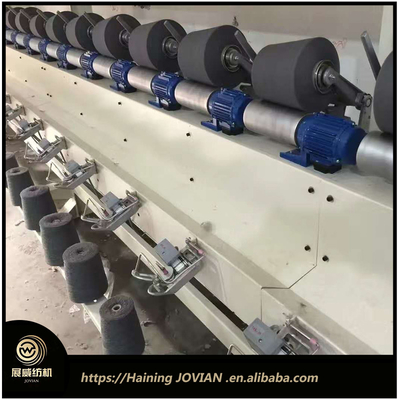

This machine for cotton spinning, wool spinning, semi worsted spinning, spinning, 5 of 32 yarn, with advanced yarn and tension mechanism with photoelectric probe yarn can avoid winding yarn knot.



Machine typeOne side groove tube
Spindle distance333 mm
Guide yarn dynamic process152 mm
Groove tube sizeDiameter 82.5 mm; length 175 mm
The speed200--700 M / min
Motor power90 watts / spindle
Driving modeSingle spindle drum motor integrated drive
Product packageMaximum finished tube diameter 250 mm
According to customer needs supporting electronic yarn cleaner, air splicer





Paoduct Showcase





HOT PRODUCTS







Haining JOVIAN Textile Machinery Co., Ltd is located in resort tide, leather capital of Haining City, Zhejiang Province. 5 kilometers from SHANGHAI-HANGZHOU express way and Hangjinqu (G60) express. Unique geographical advantage, with convenient transportation access.

JOVIAN is a comprehensive enterprise specialized in the research, development, sell and services. We covering an area of 20 acres, for modern standard workshop cover an area of about 3000square meters. We have the most edging facilities, and professional people of research, development, main production winding machine (ZW013 Type Precision Winder Machine, ZW016 Type High Speed Winding Machine, ZW280 Tpye ZW230 Type High-Speed Jumbo Pack Winder etc.) . ZW019 Type High Speed Doubling Machine, ZW015 Type Wool Spinning Winder, ZW0322 Type Doubling and Double-Twisting Machine Textile Wax and so on.
JOVIAN company attach importance to brand building, and formulate a complete set of scientific management systems. And we will continuous improvement and innovation, hope the science, management, quality, efficiency, integration into the every aspect of the business, improve the core competitiveness of the product and market resilience, to win a high admiration and is widely trusted at home and abroad.
