Cylindrical Battery Lab Li-ion 18650 26650 32650 Lab Wind Turbine Winder For Cylindrical Battery Electrode

1.0 Sets
MOQ
Cylindrical Battery Lab Li-ion 18650 26650 32650 Lab Wind Turbine Winder For Cylindrical Battery Electrode
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 2 years
Core Components: Lab Research
Warranty: 2 years
Applicable Industries: Machinery
Showroom Location: None
Output: 70-100EA/h, according to battery size and maunal
Suitable battery size: Less than 35*L90mm
Winding Speed: 0 - 170 RPM Adjustable
Winding Mode: Switchable between clockwise and counterclockwise
Product name: Winding Machine
Application: Cylindrical Battery
Function: Battery Electrode Winding
After-sales Service Provided: Video technical support, Online support
After Warranty Service: Video technical support, Online support
Local Service Location: Egypt, Russia
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: 1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shippi
Supply Ability: 10000 Set/Sets per Month
Περιγραφή προϊόντων
Product Description

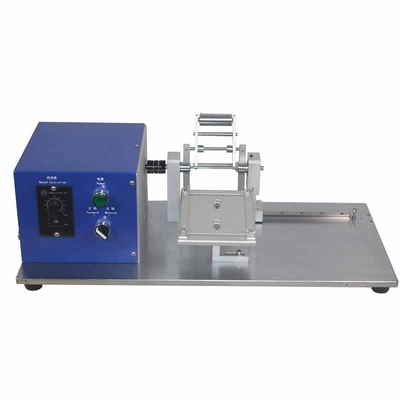

18650 26650 32650 Laboratory Winding Machine Winder for Cylindrical Battery Electrode

Features

LITH-JR135-Cylinder semi-automatic winder machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.

Advantages

1.High precision bearing, improving the precision of the electric core winding.

2.Used for cyclinder and prismatic lithium battery electric core manual winding.

3.Winding speed is adjustable, can be positive and negative sides, conveniently operation.

Specifications

Working Voltage

220VAC 50/60Hz

Max. Power Consumption

25W

Winding Speed

0-170 RPM Adjustable

Winding Blade for pouch cells

1. Dimensions: (20-90)mm(L) x (15-60)mm(W), specially designed for winding pouch cells

2. The winding width depends on the width of the winding blade.If other size is needed please contact us for customization

Winding Shaft for cylinder cells

1. Dimensions: 4mm(OD) x 65mm(L) for 18650, 26650, 32650 cylinder battery core

Warranty

One year limited manufacturer warranty with lifetime support.

Dimensions of Machine

L550mm*310mm*280mm

Winding mode

Switchable between clockwise and counterclockwise

Compliance

CE Certified

Net Weight

25kg

Related Products
Certifications

Company Information

Cooperative Partners

FAQ

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging

2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.

Packaging & Shipping

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
